異徑直通 REDUClNG UNION
[規格]
| 零件 No. PART No. |
管徑T1 Tube Size T1 |
管徑T2 Tube Size T2 |

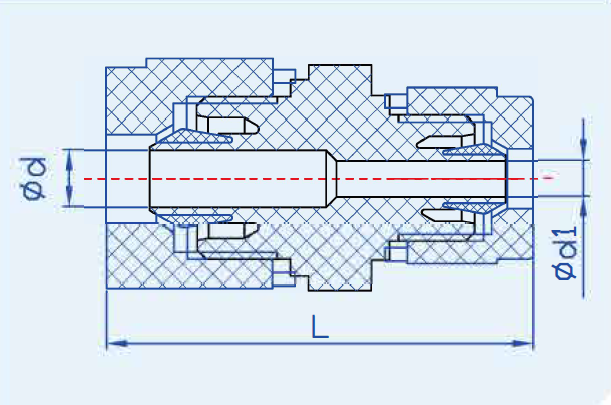

L1 | Φd | Φd1 |
| mm tube type Dimension：mm | |||||
| S-RU 4-3B | 4x3 | 3x2 | 36.5 | 3.1 | 2.1 |
| S-RU 6-3B | 6x4 | 3x2 | 41.3 | 4.4 | 2.1 |
| S-RU 6-4B | 〃 | 4x3 | 41.2 | 〃 | 3.1 |
| S-RU 8-3B | 8x6 | 3x2 | 44.2 | 6.5 | 2.1 |
| S-RU 8-4B | 〃 | 4x3 | 44.1 | 〃 | 3.1 |
| S-RU 8-6B | 〃 | 6x4 | 48.9 | 〃 | 4.4 |
| S-RU 10-6B | 10x8 | 6x4 | 53.2 | 8 | 4.4 |
| S-RU 10-8B | 〃 | 8x6 | 56.1 | 〃 | 6.5 |
| S-RU 12-6B | 12x10 | 6x4 | 56.5 | 10 | 4.4 |
| S-RU 12-8B | 〃 | 8x6 | 59.4 | 〃 | 6.5 |
| S-RU 12-10B | 〃 | 10x8 | 63.7 | 〃 | 8 |
| S-RU 19-10B | 19x15.8 | 10x8 | 76.1 | 16 | 8 |
| S-RU 19-12B | 〃 | 12x10 | 79.4 | 〃 | 810 |
| S-RU 25-19B | 25x22 | 19x15.8 | 99.4 | 22.2 | 16 |
| inch tube type Dimension：mm | |||||
| S-RU W2-W1B | 1/4"x5/32" | 1/8"x0.086" | 41.3 | 4.4 | 2.1 |
| S-RU W3-W2B | 3/8"x1/4" | 1/4"x5/32" | 53.2 | 8 | 4.4 |
| S-RU W4-W2B | 1/2"x3/8" | 1/4"x5/32" | 56.5 | 10 | 4.4 |
| S-RU W4-W3B | 〃 | 3/8"x1/4" | 63.7 | 〃 | 8 |
| S-RU W6-W3B | 3/4"x5/8" | 3/8"x1/4" | 76.1 | 16 | 8 |
| S-RU W6-W4B | 〃 | 1/2"x3/8" | 79.4 | 〃 | 10 |
| S-RU W8-W6B | 1"x7/8" | 3/4"x5/8" | 99.4 | 22.2 | 16 |
**可提供特殊物品。Special items are available.
**所有尺寸僅供參考。All dimensions are for reference only.
