異徑三通 REDUClNG UNlON TEE
[規格]
| 零件 No. PART No. |
管徑T1 Tube Size T1 |
管徑T2 Tube Size T2 |

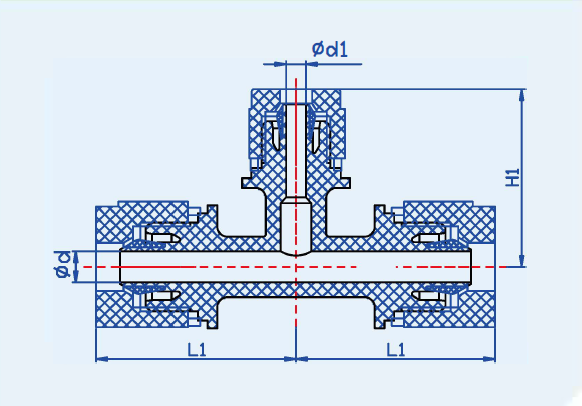

L1 | H1 | Φd | Φd1 |
| mm tube type Dimension：mm | ||||||
| S-RUT 4-3-4B | 4x3 | 3x2 | 22.7 | 22.8 | 3.1 | 2.1 |
| S-RUT 10-6-10B | 10x8 | 6x4 | 38.2 | 32 | 8 | 4.4 |
| S-RUT 12-10-12B | 12x10 | 10x8 | 47 | 41.2 | 10 | 8 |
| S-RUT 19-12-19B | 19x15.8 | 12x10 | 60.4 | 52 | 16 | 10 |
| S-RUT 25-19-25B | 25x22 | 19x15.8 | 69 | 67.4 | 22.2 | 16 |
| inch tube type Dimension：mm | ||||||
| S-RUT W3-W2-W3B | 3/8"x1/4" | 1/4"x5/32" | 38.2 | 32 | 8 | 4.4 |
| S-RUT W4-W3-W4B | 1/2"x3/8" | 3/8"x1/4" | 47 | 41.2 | 10 | 8 |
| S-RUT W6-W4-W6B | 3/4"x5/8" | 1/2"x3/8" | 60.4 | 52 | 16 | 10 |
| S-RUT W8-W6-W8B | 1"x7/8" | 3/4"x5/8" | 69 | 67.4 | 22.2 | 16 |
**可提供特殊物品。Special items are available.
**所有尺寸僅供參考。All dimensions are for reference only.
