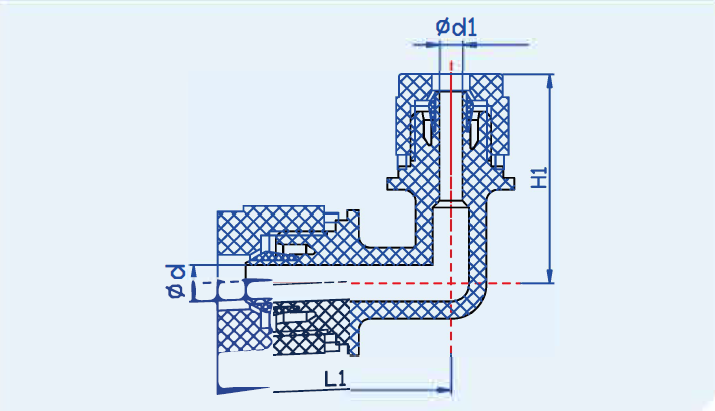

異徑 90 度彎頭 REDUClNG UNlON ELBOW
[規格]
| 零件 No. PART No. |
管徑T1 Tube Size T1 |
管徑T2 Tube Size T2 |
L1 | H1 | Φd | Φd1 |
| mm tube type Dimension：mm | ||||||
| S-RUE 4-3B | 4x3 | 3x2 | 22.7 | 22.8 | 3.1 | 2.1 |
| S-RUE 10-6B | 10x8 | 6x4 | 38.2 | 32 | 8 | 4.4 |
| S-RUE 12-10B | 12x10 | 10x8 | 47 | 41.2 | 10 | 8 |
| S-RUE 19-12B | 19x15.8 | 12x10 | 60.4 | 52 | 16 | 10 |
| inch tube type Dimension：mm | ||||||
| S-RUE W3-W2B | 3/8"x1/4" | 1/4"x5/32" | 38.2 | 32 | 8 | 4.4 |
| S-RUE W4-W3B | 1/2"x3/8" | 3/8"x1/4" | 47 | 41.2 | 10 | 8 |
| S-RUE W6-W4B | 3/4"x5/8" | 1/2"x3/8 | 60.4 | 52 | 16 | 10 |
**可提供特殊物品。Special items are available.
**所有尺寸僅供參考。All dimensions are for reference only.
