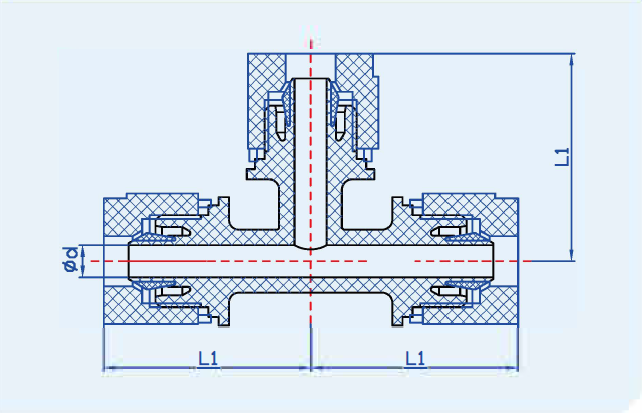

同徑三通 UNION TEE
[規格]
| 零件 No. PART No. |
管徑 Tube Size |
L | Φd |
| mm tube type Dimension：mm | |||
| S-UT - 3B | 3x2 | 22.8 | 2.1 |
| S-UT - 4B | 4x3 | 22.7 | 3.1 |
| S-UT - 6B | 6x4 | 30 | 4.4 |
| S-UT - 8B | 8x6 | 35.9 | 6.5 |
| S-UT - 10B | 10x8 | 38.2 | 8 |
| S-UT - 12B | 12x10 | 47 | 10 |
| S-UT - 19B | 19x15.8 | 60.4 | 16 |
| S-UT - 25B | 25x22 | 69 | 22.2 |
| inch tube type Dimension：mm | |||
| S-UT-W1B | 1/8"x0.086" | 22.8 | 2.1 |
| S-UT-W2B | 1/4"x5/32" | 30 | 4.4 |
| S-UT-W3B | 3/8"x1/4" | 38.2 | 8 |
| S-UT-W4B | 1/2"x3/8" | 47 | 10 |
| S-UT-W6B | 3/4"x5/8" | 60.4 | 16 |
| S-UT-W8B | 1"x7/8" | 69 | 22.2 |
**可提供特殊物品。Special items are available.
**所有尺寸僅供參考。All dimensions are for reference only.
