公管牙直通 MALE CONNECTOR
[規格]
| 零件 No. PART No. |
管徑 Tube Size |
螺紋 Thread Size |

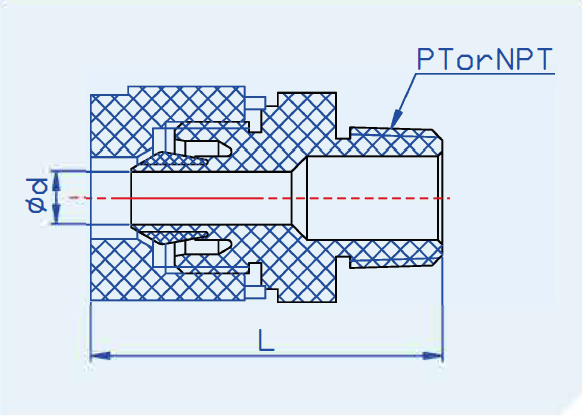

L | Φd |
| mm tube type Dimension：mm | ||||
| S-MC 3-1B | 3x2 | R 1/8 | 30.8 | 2.1 |
| S-MC 3-2B | 〃 | R 1/4 | 34.8 | 〃 |
| S-MC 4-1B | 4x3 | R 1/8 | 30.7 | 3.1 |
| S-MC 4-2B | 〃 | R 1/4 | 34.7 | 〃 |
| S-MC 6-1B | 6x4 | R 1/8 | 35.5 | 4.4 |
| S-MC 6-2B | 〃 | R 1/4 | 39.5 | 〃 |
| S-MC 6-3B | 〃 | R 3/8 | 〃 | 〃 |
| S-MC 8-1B | 8x6 | R 1/8 | 28.4 | 4.4 |
| S-MC 8-2B | 〃 | R 1/4 | 42.4 | 6 |
| S-MC 8-3B | 〃 | R 3/8 | 〃 | 6.5 |
| S-MC 8-4B | 〃 | R 1/2 | 46.4 | 〃 |
| S-MC 10-1B | 10x8 | R 1/8 | 42.7 | 4.4 |
| S-MC 10-2B | 〃 | R 1/4 | 46.7 | 6 |
| S-MC 10-3B | 〃 | R 3/8 | 〃 | 8 |
| S-MC 10-4B | 〃 | R 1/2 | 50.7 | 〃 |
| S-MC 12-2B | 12x10 | R 1/4 | 50 | 6 |
| S-MC 12-3B | 〃 | R 3/8 | 〃 | 10 |
| S-MC 12-4B | 〃 | R 1/2 | 54 | 〃 |
| S-MC 12-6B | 〃 | R 3/4 | 56 | 〃 |
| S-MC 19-3B | 19x15.8 | R 3/8 | 62.4 | 10 |
| S-MC 19-4B | 〃 | R 1/2 | 66.4 | 12 |
| S-MC 19-6B | 〃 | R 3/4 | 68.4 | 16 |
| S-MC 25-6B | 25x22 | R 3/4 | 79 | 16 |
| S-MC 25-8B | 〃 | R 1 | 82 | 22.2 |
| inch tube type Dimension：mm Dimension：mm | ||||
| S-MC W1-N1B | 1/8"x0.086" | NPT 1/8" | 30.8 | 2.1 |
| S-MC W1-N2B | 〃 | NPT 1/4" | 34.8 | 〃 |
| S-MC W2-N1B | 1/4"x5/32" | NPT 1/8" | 35.5 | 4.4 |
| S-MC W2-N2B | 〃 | NPT 1/4" | 39.5 | 〃 |
| S-MC W2-N3B | 〃 | NPT 3/8" | 〃 | 〃 |
| S-MC W3-N1B | 3/8"x1/4" | NPT 1/8" | 42.7 | 4.4 |
| S-MC W3-N2B | 〃 | NPT 1/4" | 46.7 | 6 |
| S-MC W3-N3B | 〃 | NPT 3/8" | 〃 | 8 |
| S-MC W3-N4B | 〃 | NPT 1/2" | 50.7 | 〃 |
| S-MC W4-N2B | 1/2"x3/8" | NPT 1/4" | 50 | 6 |
| S-MC W4-N3B | 〃 | NPT 3/8" | 〃 | 10 |
| S-MC W4-N4B | 〃 | NPT 1/2" | 54 | 〃 |
| S-MC W4-N6B | 〃 | NPT 3/4" | 56 | 〃 |
| S-MC W6-N3B | 3/4"x5/8" | NPT 3/8" | 62.4 | 10 |
| S-MC W6-N4B | 〃 | NPT 1/2" | 66.4 | 12 |
| S-MC W6-N6B | 〃 | NPT 3/4" | 68.4 | 16 |
| S-MC W8-N6B | 1"x7/8" | NPT 3/4" | 79 | 16 |
| S-MC W8-N8B | 〃 | NPT 1" | 82 | 22.2 |
**可提供特殊物品。Special items are available.
**所有尺寸僅供參考。All dimensions are for reference only.
