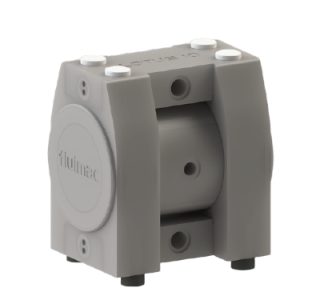

FLUIMAC 氣動隔膜泵浦

FLUIMAC-L10FLUIMAC-L10

型號：L10

品牌：FLUIMAC

ATEX 防爆認證 Zone 1

  1. Ex II 2/2 G Ex h IIC T4 Gb

  2. Ex II 2 D Ex h IIIB T135°C Db

ATEX 防爆認證 Zone 2

  1. Ex II 3/3 G Ex h IIC T4 Gc

  2. Ex II 3 D Ex h IIIB T135°C Dc X

[規格]

  1. Fluid Connections：3/8" BSP
  2. Air Connection：1/4" BSP
  3. Max. Flow Rate：24 lt/min
  4. Max Air Pressure：7 Bar
  5. Max Delivery Head：70 m
  6. Max Suction Lift Dry：4 m
  7. Max Suction Lift Wet：9.8 m
  8. Max Solid Passing：3 mm
  9. Noise Level：65 dB
  10. Max Viscosity：15000 cps
  11. Displacement Per Stroke：65 cc~

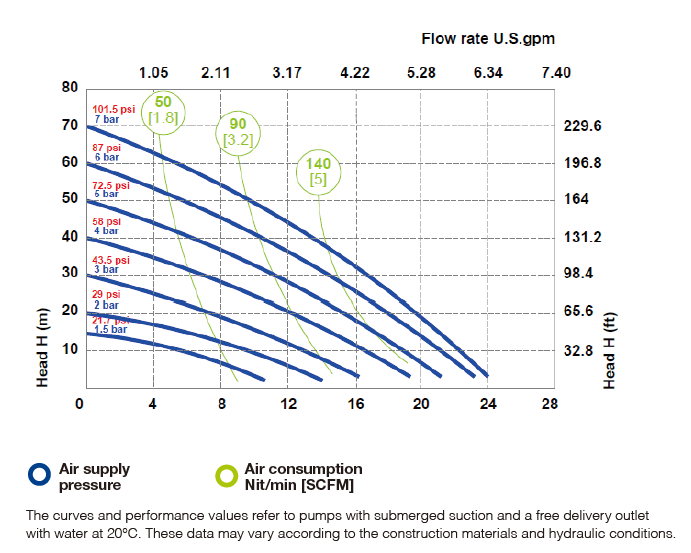

[曲線表現]

L10 Performance
